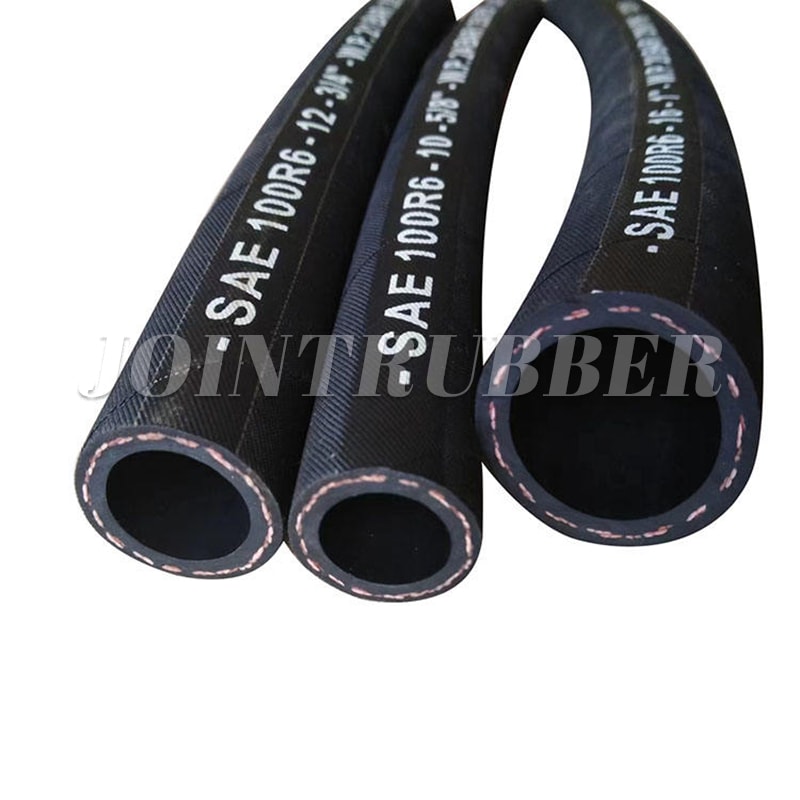

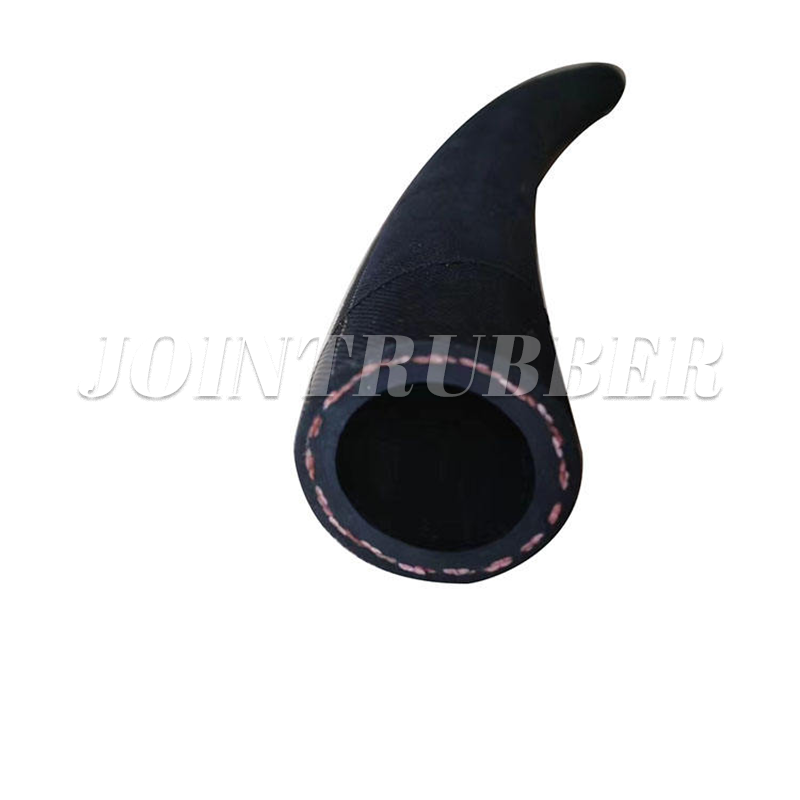

SAE 100R6

Features

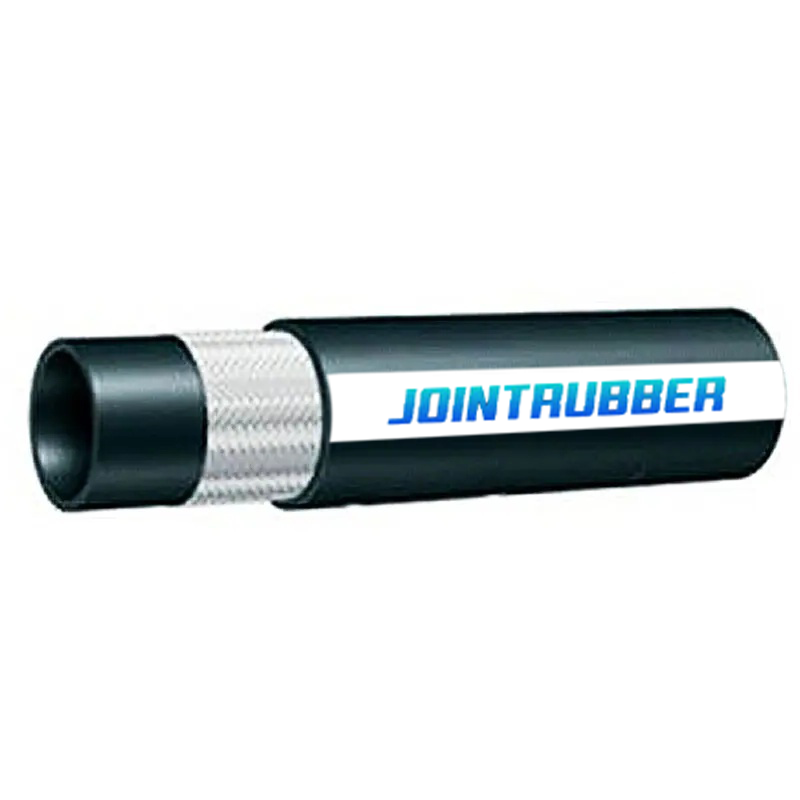

Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.
Reinforcement: 1 textile braid.
Working Pressure: 20 Bar - 34 Bar / 300 Psi - 500 Psi.
Operating temperature: From -40 to +100℃ (intermittent 120℃), from -40 to +70℃ for water based fluids, from 0 to +70℃ hot air. Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid: SAE 100R6 is suitable for hydraulic fluids petroleum based (mineral oils), glycol-water based, water, lubricants.

Consult now

Technical Specifications


Size		Hose ID		Hose O.D.		Working Pressure		Burst Pressure		Bend Radius	Length	Weight
In.	mm	Min	Max	Min	Max	Bar	Psi	Bar	Psi	mm	m	kg/m
3/16	5	4.2	5.4	10.3	11.9	35	510	140	2030	50	50	0.13
1/4	6.3	5.6	7.2	11.9	13.5	28	410	110	1600	65	50	0.15
5/16	8	7.2	8.8	13.5	15.1	28	410	110	1600	75	50	0.18
3/8	10	8.7	10.3	15.1	16.7	28	410	110	1600	75	50	0.20
1/2	12.5	11.9	13.4	19.0	20.6	28	410	110	1600	100	50	0.26
9/16	14	13.8	14.6	21.0	22.0	28	410	110	1600	115	50	0.30
5/8	16	15.1	16.6	22.2	23.8	24	350	96	1400	125	50	0.33
3/4	19	18.3	19.8	25.4	27.8	21	300	84	1200	150	50	0.39
7/8	22	21.8	22.8	29.7	30.7	21	300	84	1200	205	50	0.46
1	25	24.8	26.0	33.5	34.5	20	290	80	1160	230	50	0.57
