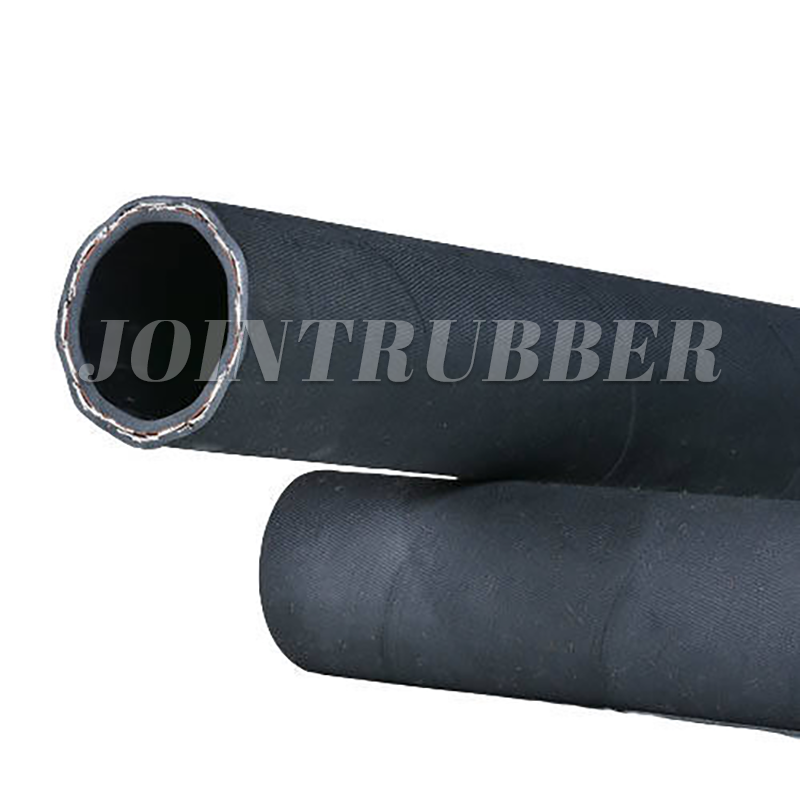

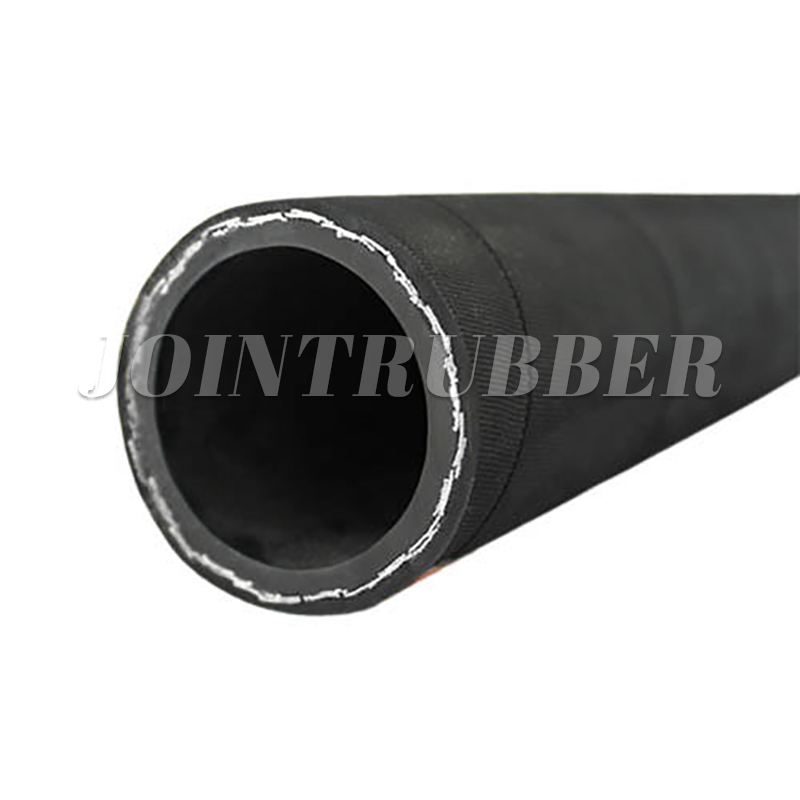

SAE 100R1AT/DIN EN853 1SN

Features

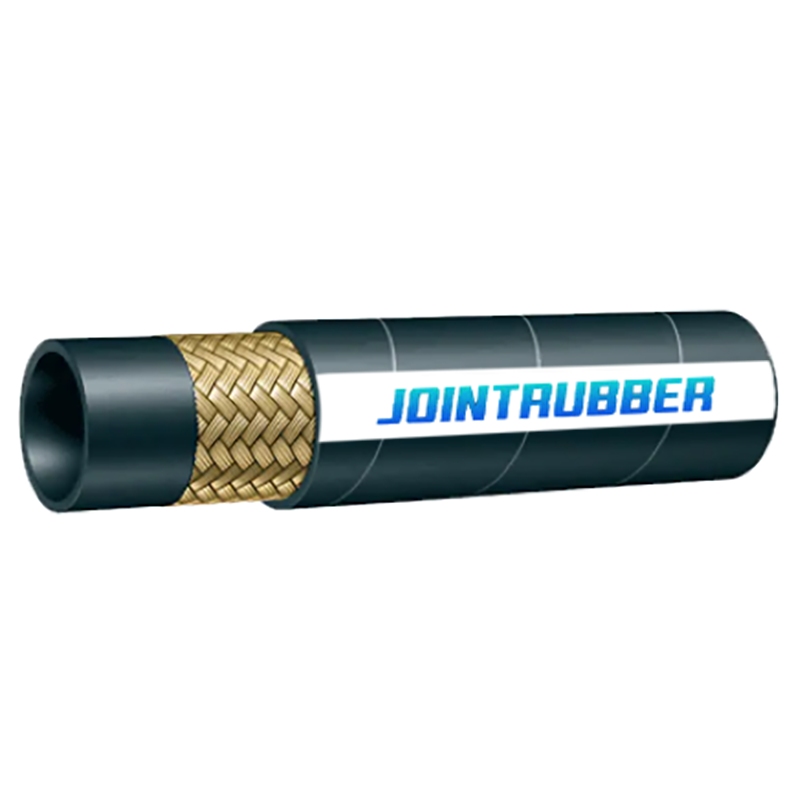

Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.
Reinforcement: 1 steel wire braid.
Working Pressure: 40Bar - 250Bar / 580Psi - 3625Psi.
Impulse Times: ≥ 150,000 Times.
Operating temperature: From -40 to +100°C (intermittent 120°C), from -40 to +70°C for water based fluids, from 0 to +70°C hot air. Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid: SAE 100R1AT/DIN EN853 1SN is suitable for mineral and biological oils, glicol-water based, water, lubricants.

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
1/4	6.4	0.52	13.1	3275	22.5	13100	90.0	3.94	100	50/100	0.23	0.16
5/16	7.9	0.58	14.7	3125	21.5	12500	85.0	4.53	115	50/100	0.27	0.18
3/8	9.5	0.67	17.1	2600	18.0	10400	72.0	4.92	125	50/100	0.36	0.24
1/2	12.7	0.80	20.3	2325	16.0	9300	64.0	7.09	180	50/100	0.47	0.32
5/8	15.9	0.92	23.3	1900	13.0	7600	52.0	7.87	200	50/100	0.53	0.36
3/4	19.1	1.08	27.4	1525	10.5	6100	42.0	9.45	240	50/100	0.66	0.45
1	25.4	1.38	35.1	1275	8.8	5100	35.0	11.81	300	50/100	0.98	0.66
1 1/4	31.8	1.69	43.0	925	6.3	3700	25.0	16.54	420	20/40	1.29	0.87
1 1/2	38.1	1.95	49.5	725	5.0	2900	20.0	19.69	500	20/40	1.53	1.03
2	50.8	2.48	63.0	600	4.0	2700	16.0	24.8	630	20/40	2.03	1.37
2 1/2	63.8	3.03	77.0	360	2.5	1600	10.0	29.92	760	20/40	2.71	1.83
3	76.0	3.46	88.0	290	2.0	1160	8.0	34.65	880	20/40	2.91	1.97
