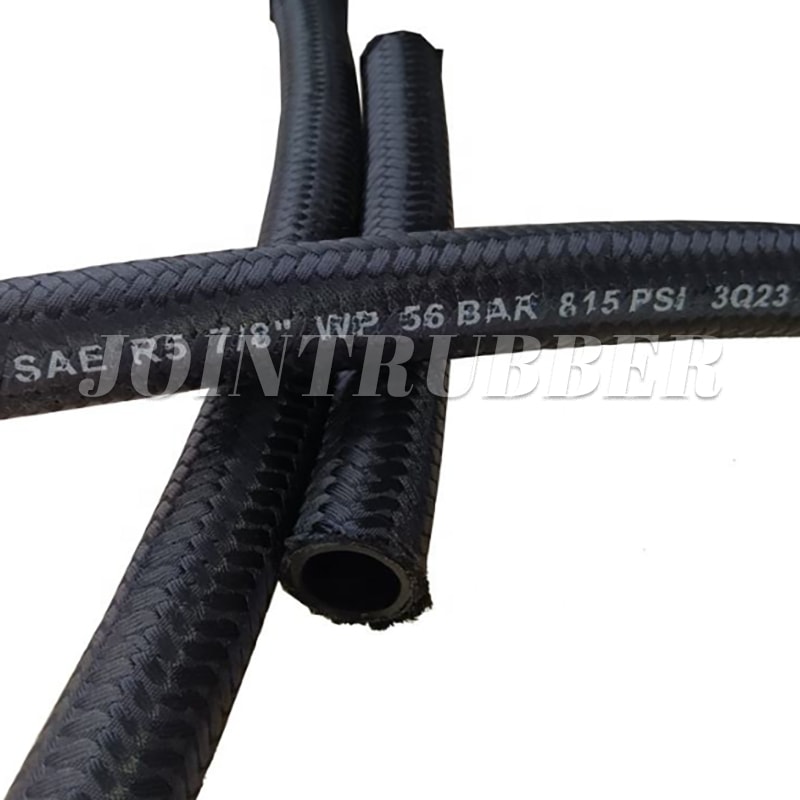

SAE 100R5
Home > Products
SAE 100R5
Features

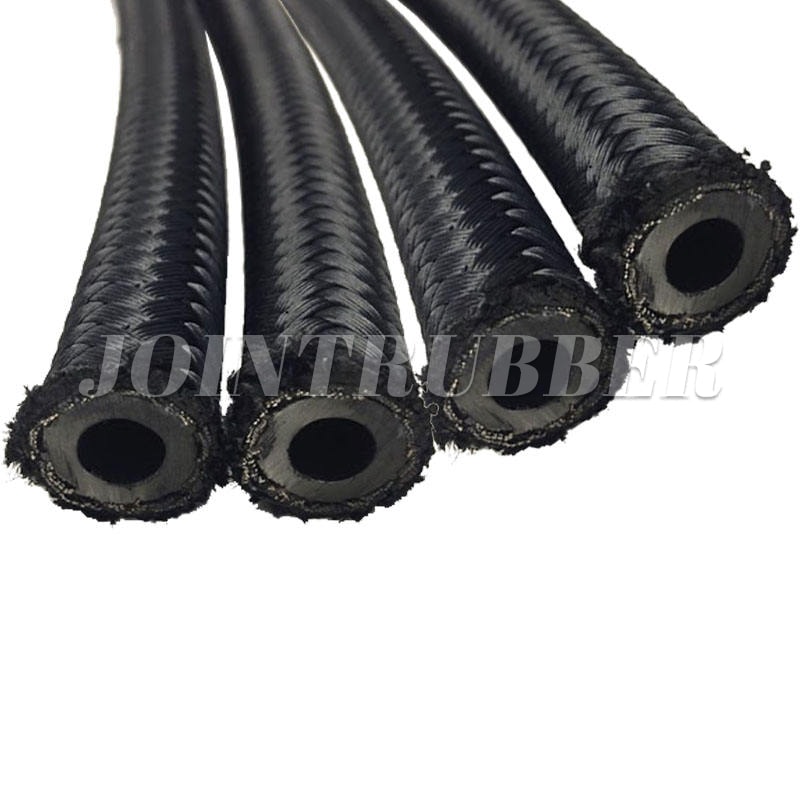

Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.

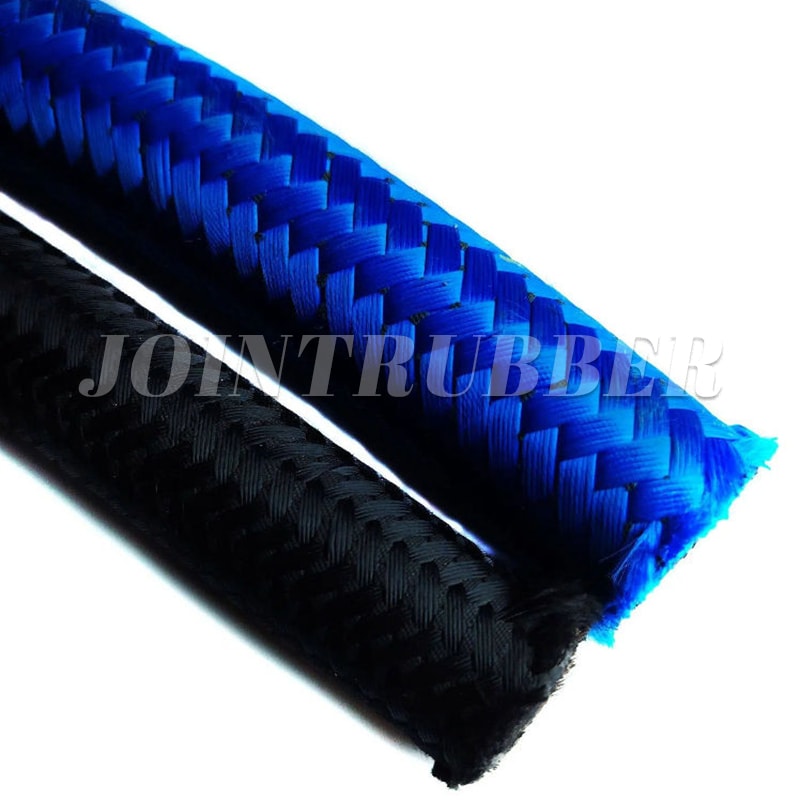

Covering: Blue Color textile braided cover
Reinforcement: 1 steel wire braid.
Working Pressure: 24 Bar - 210 Bar / 348 Psi - 3045 Psi
Operating temperature: From -40 to +135°C petroleum based fluids (Intermittent 155°C)
Recommended fluid: SAE 100R5 is suitable for hydraulic fluids petroleum based (mineral oils), glycol-water based, water, lubricants.
Technical Specifications

Size

Hose ID

Hose O.D.

Working
Pressure

Burst
Pressure

Bend
Radius

Length

Weight

In.

mm

Min

Max

Min

Max

Bar

Psi

Bar

Psi

mm

m

kg/m

3/16

5

4.8

5.5

12.7

13.7

210

3050

840

12180

75

50/100

0.23

1/4

6.3

6.4

7.2

14.3

15.3

210

3050

840

12180

85

50/100

0.27

5/16

8

7.9

8.7

16.7

17.6

157

2280

628

9100

100

50/100

0.33

3/8

10

9.5

10.1

17.8

18.8

145

2100

580

8410

100

50/100

0.37

13/32

11

10.3

11.1

18.9

20.0

140

2030

560

8120

115

50/100

0.39

1/2

12.5

12.7

13.7

22.8

24.0

122

1770

488

7070

140

50/100

0.58

5/8

16

15.9

17.0

26.8

28.0

105

1520

420

6090

165

50/100

0.72

3/4

19

18.8

19.4

27.4

28.2

78

1130

312

4520

175

50/100

0.66

7/8

22

22.2

23.3

30.6

32.2

56

810

224

3250

185

20/40

0.72

1

25

25

25.8

33.6

34.4

50

730

200

2900

200

20/40

0.78

1 1/8

29

28.6

29.8

37.3

38.9

43

620

172

2494

230

20/40

0.83

1 3/8

35

34.9

36.1

43.7

45.2

35

510

140

2030

265

20/40

1.00

1 13/16

46

46.0

47.2

55.2

57.6

24

350

96

1392

335

20/40

1.34

2

51

50.4

51.6

61.4

62.6

24

350

96

1392

500

20/40

1.68

2 3/8

60

60.3

61.9

71.8

74.2

24

350

96

1392

610

20/40

2.21

3

76

76.2

77.8

89.3

91.7

14

200

56

812

840

20/40

2.71
