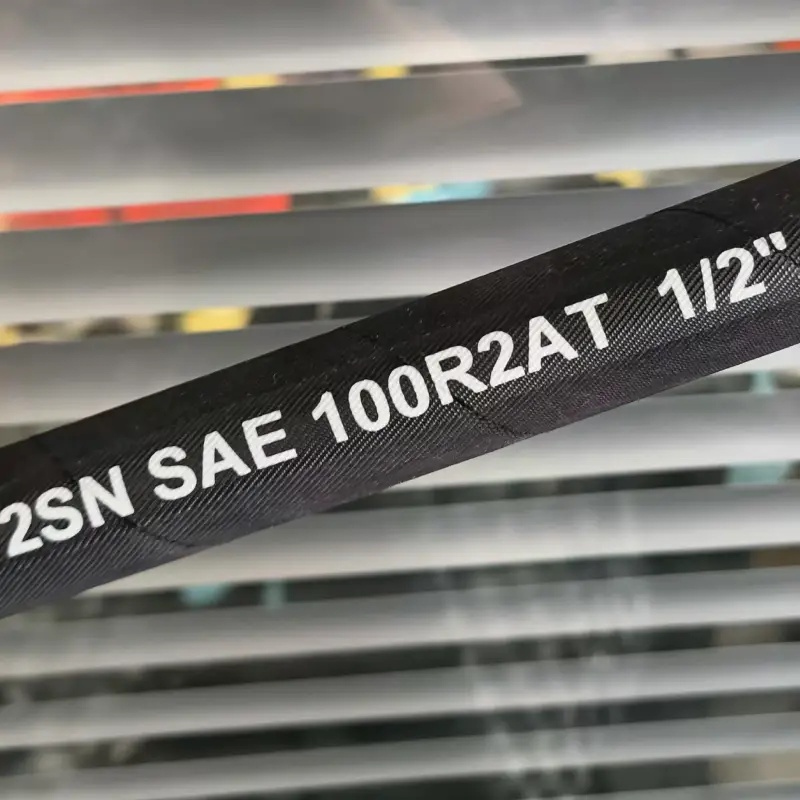

SAE 100R2AT/DIN EN853 2SN
Features
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.

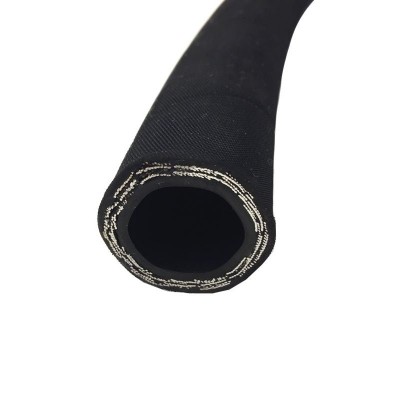

Reinforcement: 2 steel wire braids.
Working Pressure: 80bar - 415bar / 1160Psi - 6017Psi.
Impulse Times: ≥200,000 times.
Operating temperature: From -40 to +100°C (intermittent 120°C ), from -40 to +70°C for water based fluids, from 0 to +70°C hot air. Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid: SAE 100R2AT/DIN EN853 2SN is suitable for mineral and biological oils, glycol-water based, water, lubricants.
Technical Specifications
Hose IDHose O.D.Working PressureMin. Burst PressureMin. Bend RadiusLengthWeight

Hose ID

Hose O.D.

Working Pressure

Min. Burst Pressure

Min. Bend Radius

Length

Weight

In.

mm

In.

mm

psi

MPa

psi

MPa

In.

mm

m

kg/m

lb/ft

1/4

6.4

0.59

15.1

5800

40.0

23200

160.0

3.94

100

50/100

0.38

0.26

5/16

7.9

0.64

16.3

5075

35.0

20300

140.0

4.53

115

50/100

0.44

0.30

3/8

9.5

0.74

18.7

4800

33.0

19200

132.0

4.92

125

50/100

0.56

0.38

1/2

12.7

0.86

21.8

4000

27.5

16000

110.0

7.09

180

50/100

0.66

0.45

5/8

15.9

0.98

25.0

3625

25.0

14500

100.0

7.87

200

50/100

0.80

0.54

3/4

19.1

1.14

29.0

3120

21.5

12480

85.0

9.45

240

50/100

0.99

0.67

1

25.4

1.43

36.5

2400

16.5

9600

65.0

11.81

300

50/100

1.36

0.92

1 1/4

31.8

1.85

47.0

1810

12.5

7240

50.0

16.54

420

20/40

2.01

1.36

1 1/2

38.1

2.11

53.6

1300

9.0

5200

36.0

19.69

500

20/40

2.35

1.59

2

50.8

2.58

65.6

1175

8.0

4700

32.0

24.80

630

20/40

2.75

1.86

2 1/2

63.8

3.07

78.0

720

5.0

2880

20.0

29.92

760

20/40

3.56

2.41

3

76.0

3.56

90.5

580

4.0

2320

16.0

34.65

880

20/40

4.03

2.72
