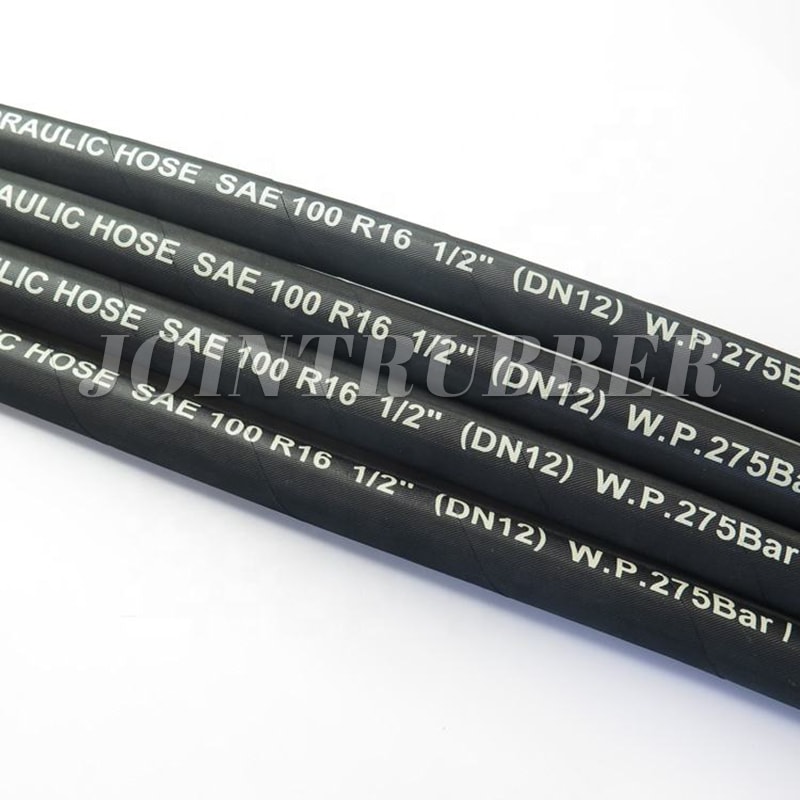

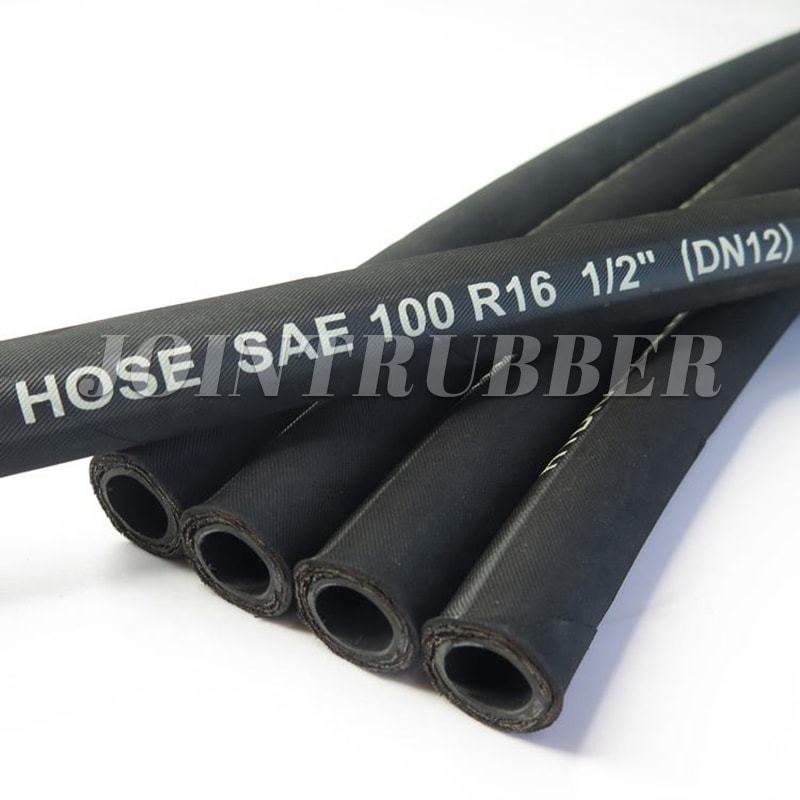

SAE 100R16

Features

Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.

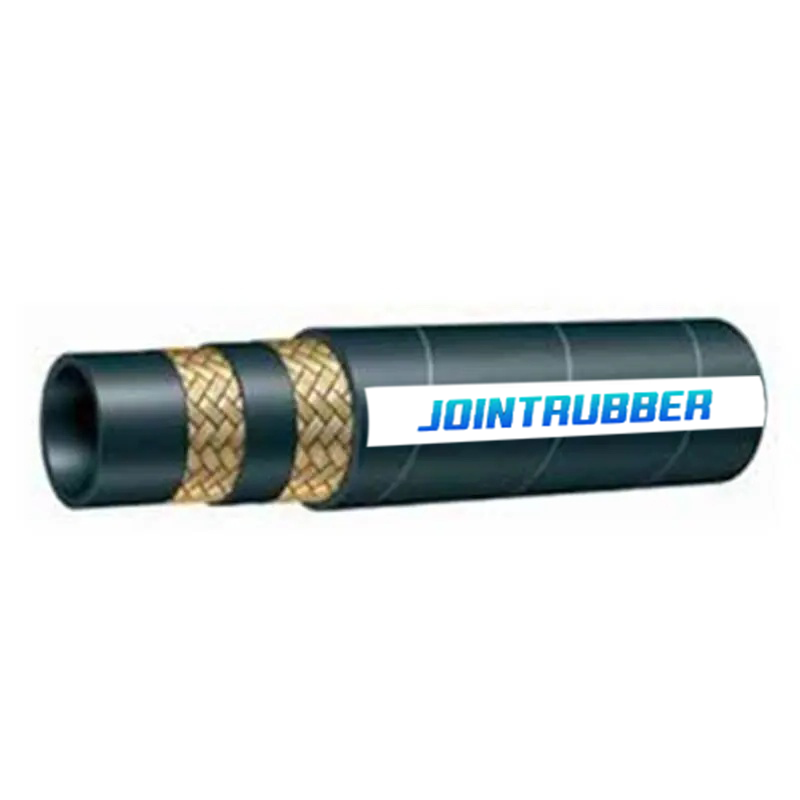

Reinforcement: 2 steel wire braids.
Working Pressure: 125 Bar - 400 Bar / 1813.5 Psi - 5800 Psi
Impulse Times: ≥ 200,000 Times.
Operating temperature: From -40 to +100°C (intermittent 120°C), from -40 to +70°C for water based fluids, from 0 to +70°C hot air. Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid: SAE 100R16 is suitable for mineral and biological oils, glycol-water based, water, lubricants.

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
1/4	6.4	0.53	13.5	5800	40.0	23200	160	1.5	38.1	50/100	0.31	0.21
5/16	7.9	0.60	15.3	5075	35.0	20300	140	1.8	45.7	50/100	0.37	0.25
3/8	9.5	0.71	18.0	4785	33.0	19140	132	2.0	50.8	50/100	0.47	0.32
1/2	12.7	0.83	21.1	3990	27.5	15950	110	2.8	71.1	50/100	0.60	0.41
5/8	15.9	0.97	24.7	3625	25.0	14500	100	3.0	76.2	50/100	0.73	0.49
3/4	19.0	1.10	28.0	3120	21.5	12470	86	3.8	96.5	50	0.87	0.59
1	25.4	1.40	35.6	2395	16.5	9570	66	4.5	114.3	50	1.38	0.93
1 1/4	31.8	1.71	43.5	1815	12.5	7250	50	5.9	150.0	50	1.78	1.20
