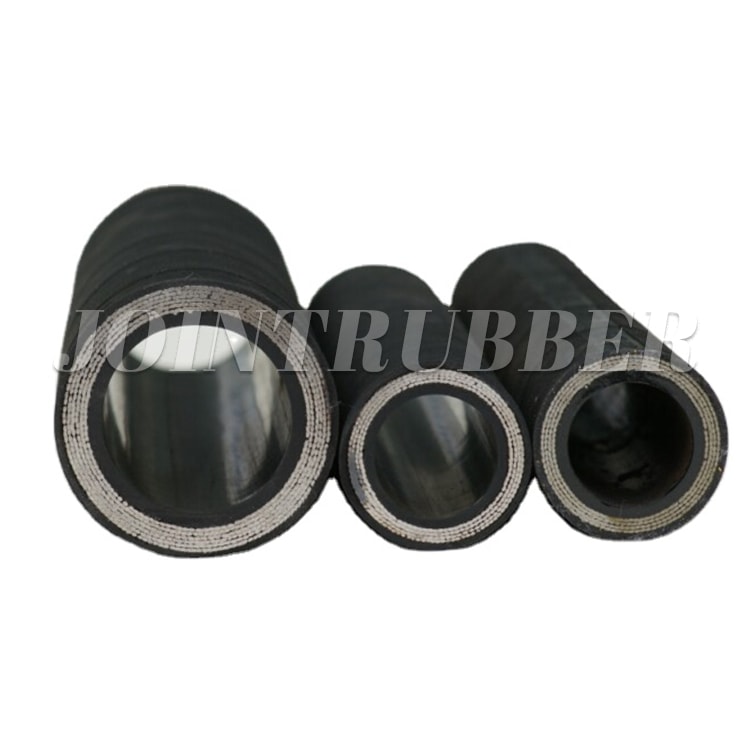

SAE 100R13

Features

Internal hose:Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering:Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.

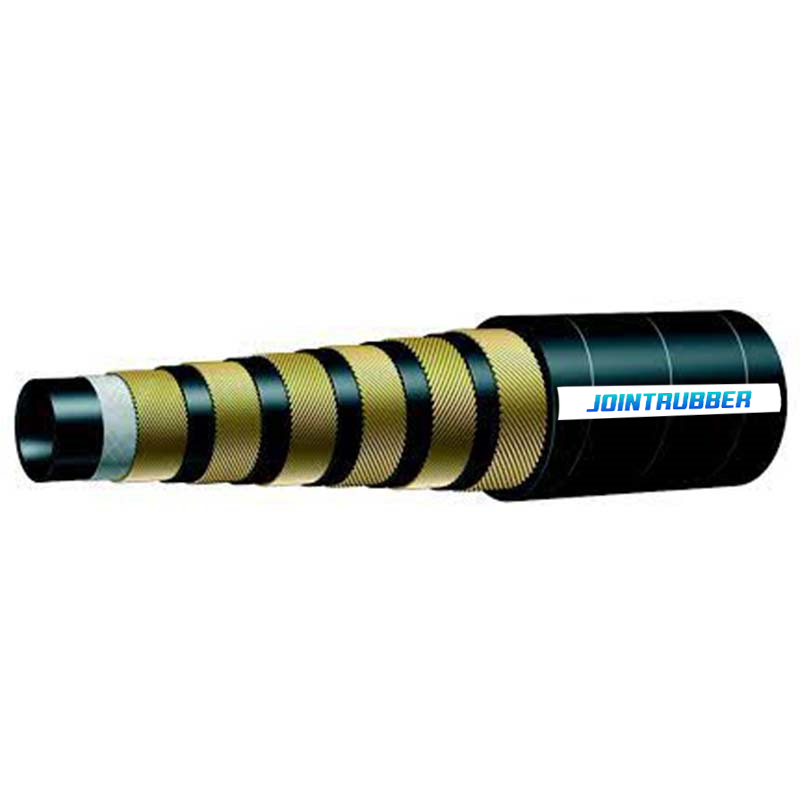

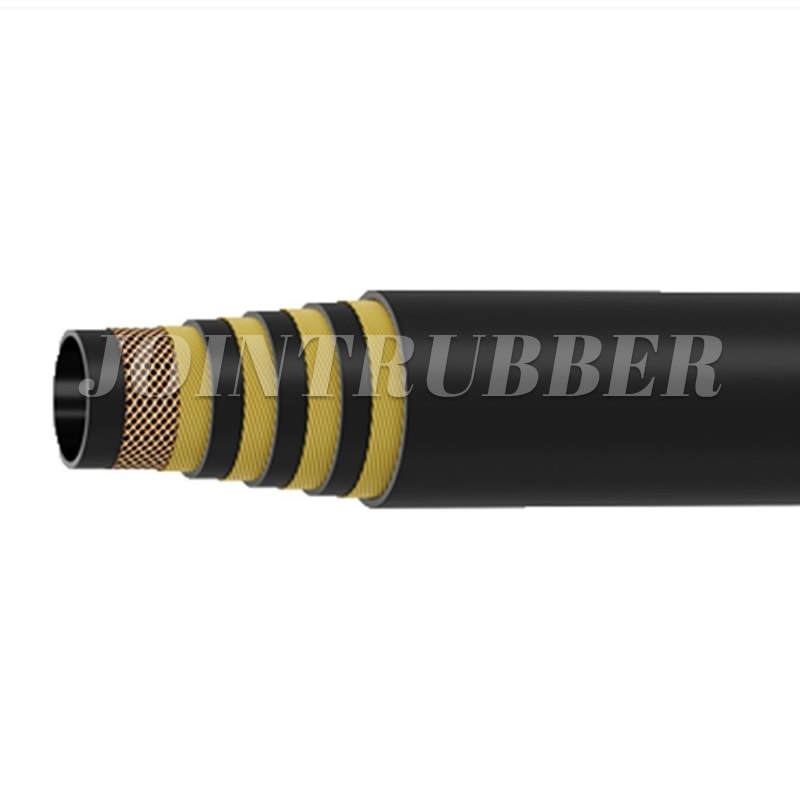

Reinforcement:4 high tensile steel wire spiral up to size 1",6 spiral from size 1,1/4" to 2".
Working Pressure:350Bar /5075Psi
Impulse Times:≥500,000Times.
Operating temperature:From -40 to +120C (intermittent 125°C), from-40 to +70°C for water based fluids, from 0 to +70C hot air.Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid:SAE 100R13 is suitable for Mineral and biological oils, glicol-water based, water, lubricants.

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
3/4	19.0	1.22	31.0	5000	34.5	20000	138	9.45	240	20/40	1.57	1.06
1	25.4	1.52	38.7	5000	34.5	20000	138	11.81	300	20/40	2.19	1.48
1 1/4	31.8	1.94	49.4	5000	34.5	20000	138	16.54	420	20/40	3.92	2.65
1 1/2	38.1	2.26	57.4	5000	34.5	20000	138	19.69	500	20/40	4.90	3.31
2	50.8	2.78	70.6	5000	34.5	20000	138	24.80	630	20/40	6.73	4.55
