DIN EN857 2SN-K - Products

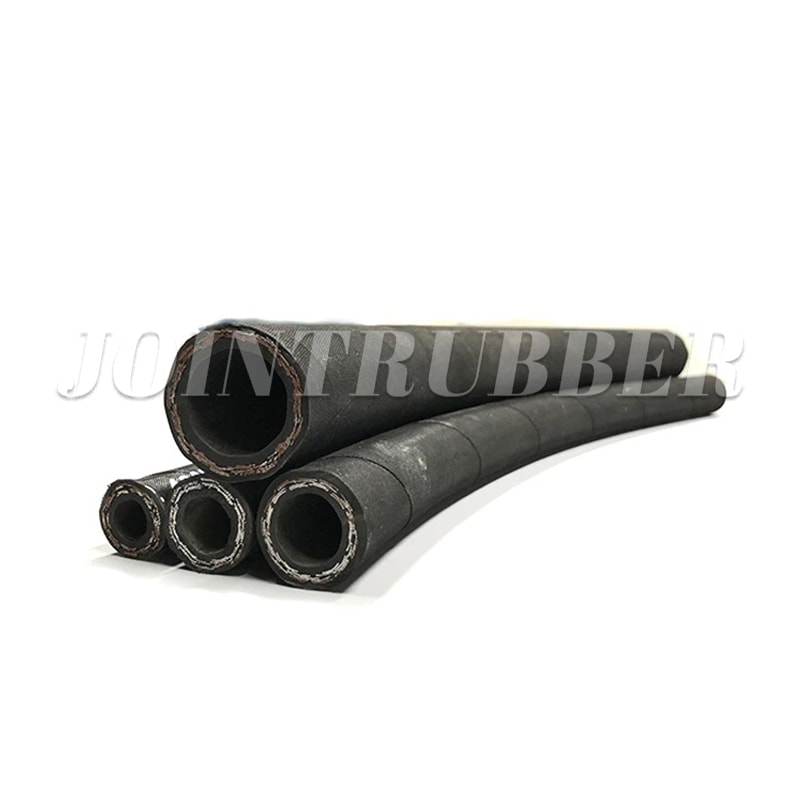

DIN EN857 2SN-K

Features

Internal hose: Synthetic rubber, resistant against hydraulic fluids(HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Covering:Abrasion and ozone resistant synthetic rubber
Reinforcement:Two braids of high tensile steel wire
Operating temperature:-40°C to +100°C
Recommended fluid:DIN EN857 2SN-K is suitable for Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Burst Pressure		Bend Radius	Length	Weight
In.	mm	In.	mm	Bar	Psi	Bar	Psi	mm	m	kg/m
1/4	6.2	0.54	13.4	450	6960	1900	27550	45	50/100	0.27
5/16	8.0	0.60	15.0	420	6235	1700	24650	60	50/100	0.31
3/8	9.8	0.68	16.8	385	5510	1500	21750	70	50/100	0.39
1/2	12.5	0.80	20.5	350	4800	1300	18850	90	50/100	0.48
5/8	16.0	0.94	23.7	290	4350	1200	17400	130	50/100	0.64
3/4	19.0	1.09	27.7	280	3625	1000	14500	160	50	0.79
1	25.0	1.39	35.0	200	2900	800	11600	210	50	1.22
1-1/4	32.0	1.71	43.5	175	2540	700	10160	300	40	1.85
