DIN EN857 2SC - Products

DIN EN857 2SC

Features

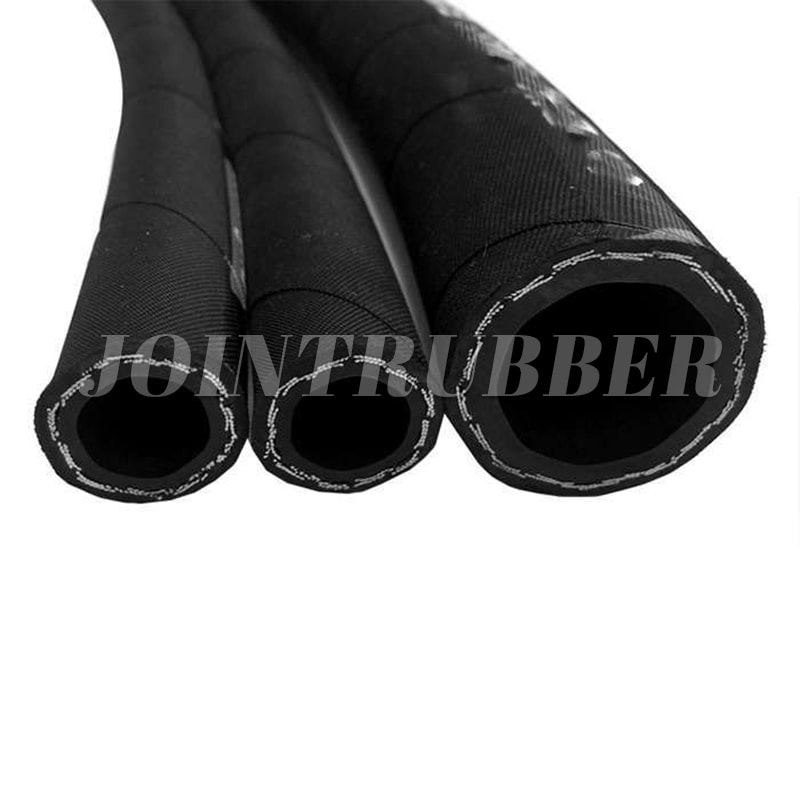

Internal hose:Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering:Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.
Reinforcement:2 steel wire braids
Working Pressure:165Bar-400Bar/2393Psi-5800Psi
Impulse Times:≥200,000Times.
Operating temperature:From -40 to +100C (intermittent 120C), from -40 to +70°C for water based fluids, from 0 to +70C hot air.Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid:DIN EN857 2SC is suitable for Mineral and biological oils, glicol-water based, water, lubricants.

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
1/4	6.4	0.54	13.8	5800	40.0	23200	160	2.95	75	50/100	0.31	0.21
5/16	7.9	0.60	15.2	5075	35.0	20300	140	3.35	85	50/100	0.35	0.24
3/8	9.5	0.69	17.5	4785	33.0	19140	132	3.54	90	50/100	0.45	0.30
1/2	12.7	0.83	21.0	3990	27.5	15950	110	5.12	130	50/100	0.63	0.43
5/8	15.9	0.95	24.2	3625	25.0	14500	100	6.69	170	50/100	0.72	0.49
3/4	19.0	1.10	28.0	3120	21.5	12470	86	7.87	200	50/100	0.91	0.61
1	25.4	1.41	35.8	2395	16.5	9570	66	9.84	250	50	1.31	0.89
