DIN EN857 1SN-K - Products

DIN EN857 1SN-K

Features

Internal hose:Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Covering:Abrasion and ozone resistant synthetic rubber

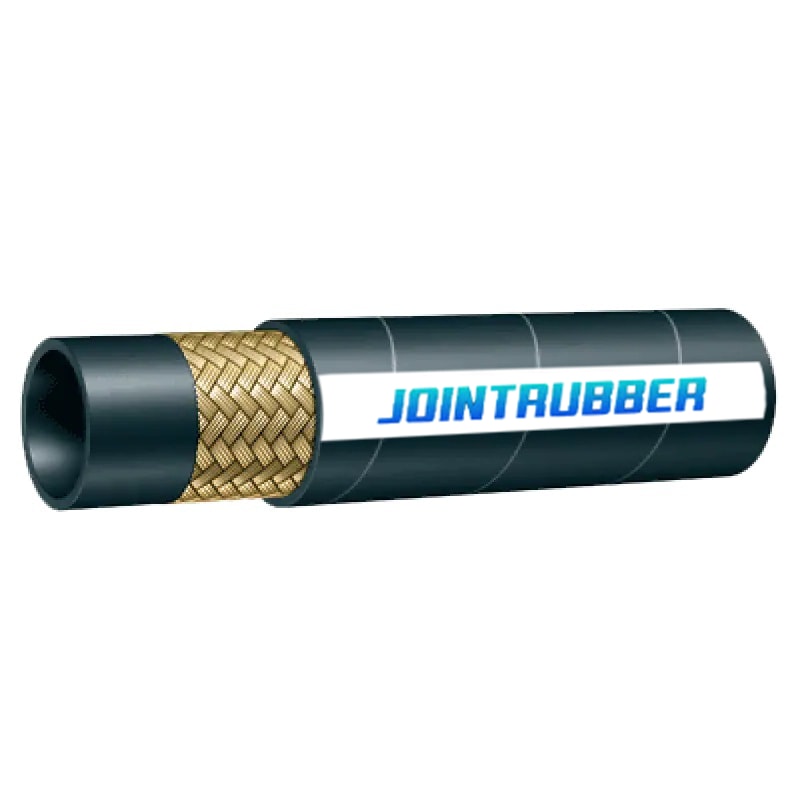

Reinforcement:One braid of high tensile steel wire
Operating temperature:-40°C to +121°C
Recommended fluid:DIN EN857 1SN-K is suitable for Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Burst Pressure		Bend Radius	Length	Weight
In.	mm	In.	mm	Bar	Psi	Bar	Psi	mm	m	kg/m
1/4	6.2	0.47	12.0	290	4205	1160	16820	40	50/100	0.20
5/16	8.0	0.54	13.6	250	3625	1000	14500	55	50/100	0.30
3/8	9.8	0.61	15.4	230	3335	920	13340	65	50/100	0.34
1/2	12.5	0.75	19.0	200	2900	800	11600	80	50/100	0.35
5/8	16.0	0.87	22.2	150	2175	600	8700	105	50/100	0.50
3/4	19.0	1.01	25.7	125	1812	500	7250	120	50	0.60
1	25.0	1.31	33.2	110	1595	440	6380	160	50	0.80
1-1/4	32.0	1.69	43.0	100	1450	400	5800	300	40	1.28
