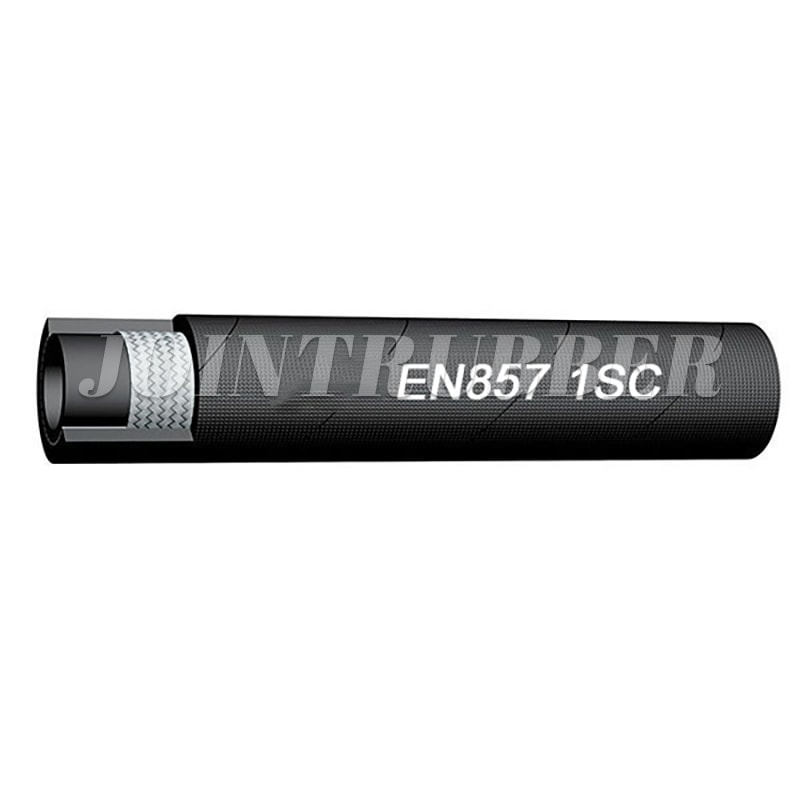

DIN EN857 1SC

Features

Internal hose:Synthetic rubber, extruded whole without joints, of uniform thickness.
Covering:Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.
Reinforcement:1 steel wire braid.
Working Pressure:88Bar-225 Bar/1276Psi-3262.5Psi.
Impulse Times:≥ 150,000Times.
Operating temperature:From -40 to +100°C (intermittent 120C), from-40 to +70C for water based fluids, from 0 to +70C hot air.Prolonged operation at extreme temperatures will reduce hoses life.
Recommended fluid:DIN EN857 1SC is suitable for Mineral and biological oils, glicol-water based, water, lubricants.

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
1/4	6.4	0.50	12.7	3265	22.5	13050	90	2.95	75	50/100	0.21	0.14
5/16	7.9	0.55	14.0	3120	21.5	12470	86	3.35	85	50/100	0.24	0.16
3/8	9.5	0.64	16.4	2610	18.0	10440	72	3.54	90	50/100	0.31	0.21
1/2	12.7	0.79	20.0	2320	16.0	9280	64	5.12	130	50/100	0.40	0.27
5/8	15.9	0.89	22.7	1885	13.0	7540	52	5.91	150	50/100	0.46	0.31
3/4	19.0	1.03	26.2	1525	10.5	6090	42	7.09	180	50/100	0.57	0.39
1	25.4	1.34	34.0	1275	8.8	5075	35	9.06	230	50	0.94	0.64
