DIN EN856 4SP

Features

Inner Tube: oil resistant synthetic rubber

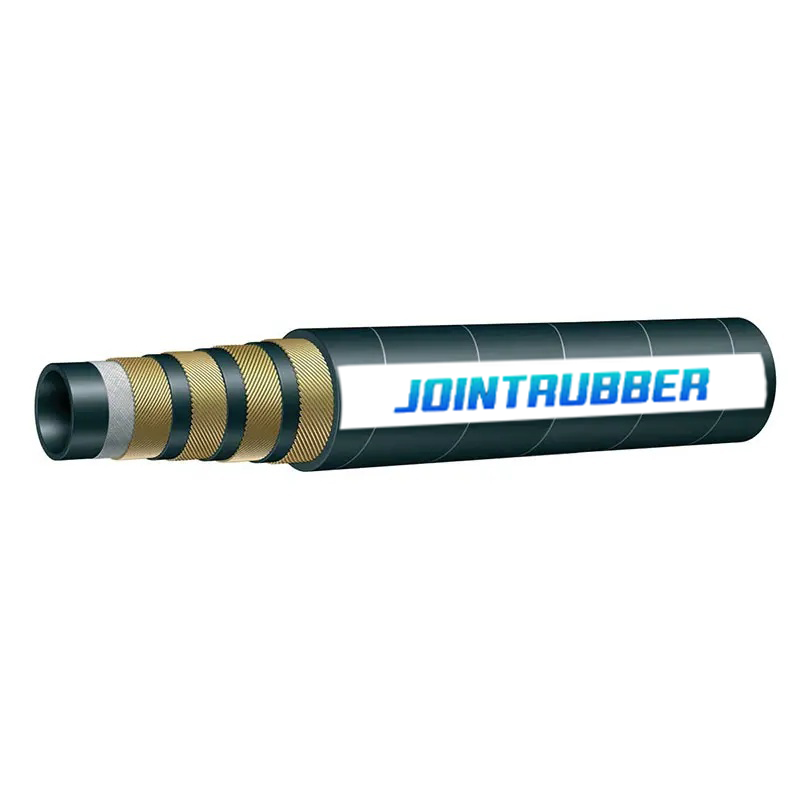

Reinforcement: a braid of textile material over the inner tube and four spiral plies of heavy steel wire wrapped in alternating direction
Cover: weather- and oil-resistant synthetic rubber
Temperature Range: -40℃ to +100℃

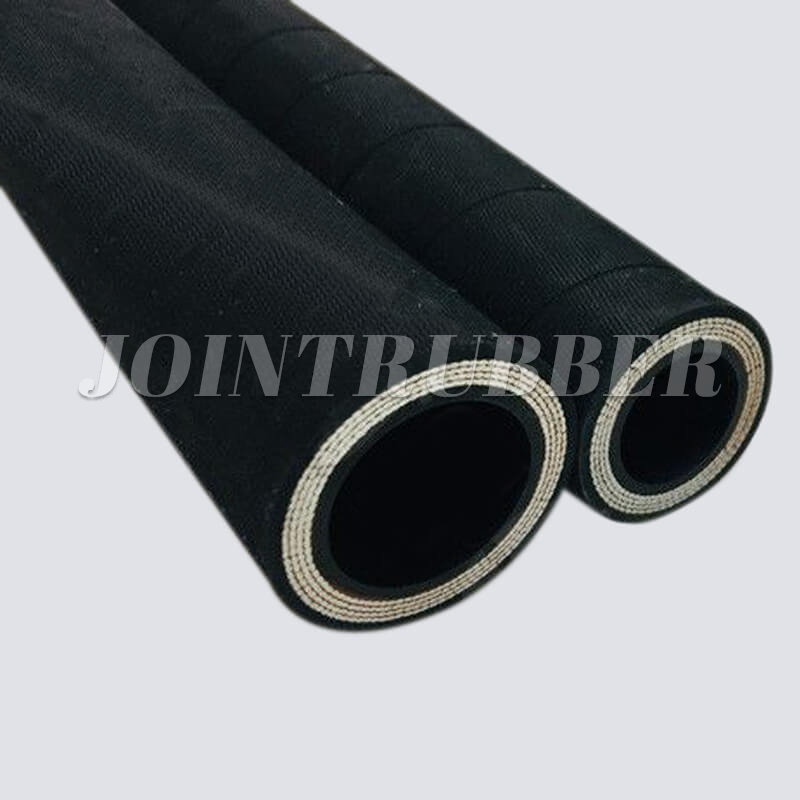

Description: DIN EN856 4SP Hydraulic rubber hose / Hydraulic hose
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more

Consult now

Technical Specifications


Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
3/8	9.5	0.80	20.2	6455	44.5	25820	178.0	4.3	109.2	20/40/60	0.71	0.48
1/2	12.7	0.91	23.0	6018	41.5	24072	166.0	4.7	119.4	20/40/60	0.85	0.57
5/8	15.9	1.04	26.5	5075	35.0	20300	140.0	5.5	139.7	20/40/60	1.03	0.70
3/4	19.0	1.22	31.0	5075	35.0	20300	140.0	6.7	170.2	20/40/60	1.58	1.07
1	25.4	1.48	37.6	4060	28.0	16240	112.0	13.4	340.4	20/40/60	2.01	1.36
1 1/4	31.8	1.79	45.4	3045	21.0	12180	84.0	18.1	459.7	20/40/60	2.68	1.81
1 1/2	38.1	2.06	52.4	2685	18.5	10730	74.0	22.0	560.0	20/40/60	3.30	2.23
2	50.8	2.63	66.8	2395	16.5	9580	66.0	26.0	660.0	20/40/60	4.37	2.95
