DIN EN854 3TE - Products

DIN EN854 3TE

Features

Inner Tube: oil and water resistant synthetic rubber
Reinforcement: Two high tensile textile
Cover: weather and oil resistant synthetic rubber
Temperature Range: -40℃ to +100℃

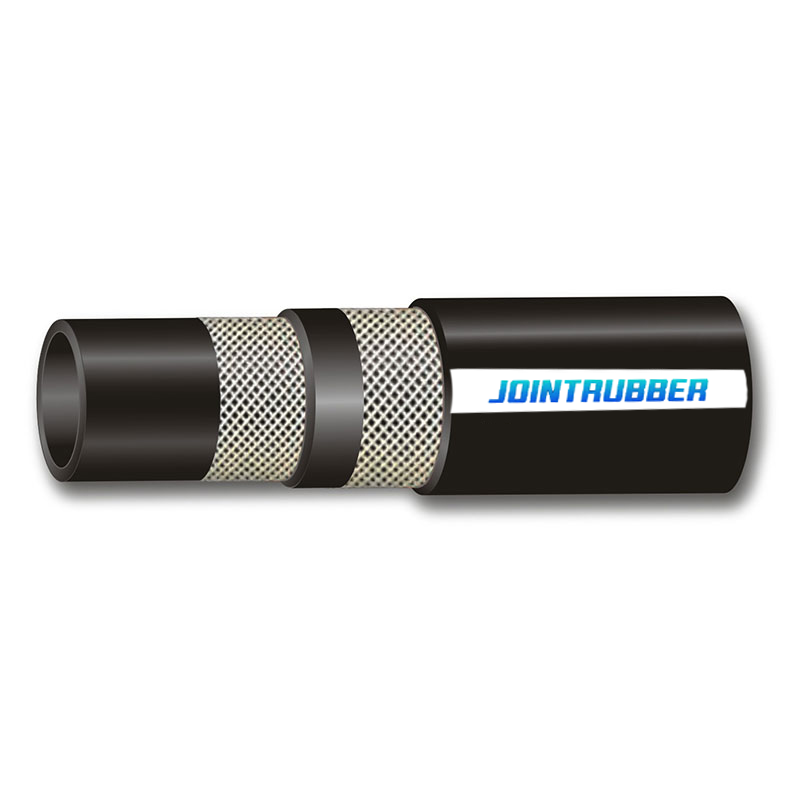

Description: DIN EN 854 3TE hydraulic rubber hose / Hydraulic hose
Application: Petroleum based hydraulic fluid, gasoline, water, lubricating oils, glycol, mineral oils, and more.

Consult now

Technical Specifications


Size		Hose ID	Hose O.D.	Max Working Pressure		Min Burst Pressure		Min Bend Radius	Weight
In.	mm	mm	mm	Bar	Psi	Bar	Psi	mm	kg/m
3/16	5	5±0.2	12.8±0.3	160	2320	640	9280	40	0.16
1/4	6	6.2±0.2	14.5±0.3	145	2103	580	8410	45	0.19
5/16	8	8±0.2	17±0.3	130	1885	520	7540	55	0.24
3/8	10	9.8±0.2	18±0.3	110	1595	440	6380	70	0.27
1/2	12.5	12.5±0.2	21.8±0.3	93	1349	372	5394	85	0.34
5/8	16	16±0.2	26±0.3	80	1160	320	4640	105	0.43
3/4	19	19±0.2	29±0.3	70	1015	280	4060	130	0.50
1	25	25±0.2	36±0.3	55	798	220	3190	150	0.67
1-1/4	32	32±0.2	42.3±0.3	45	6539	180	2610	190	0.83
