DIN EN854 2TE

Features

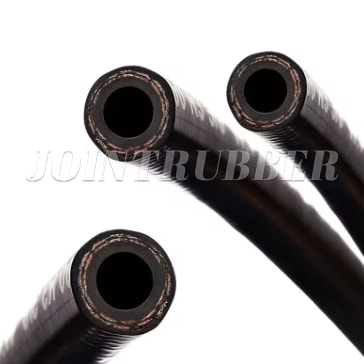

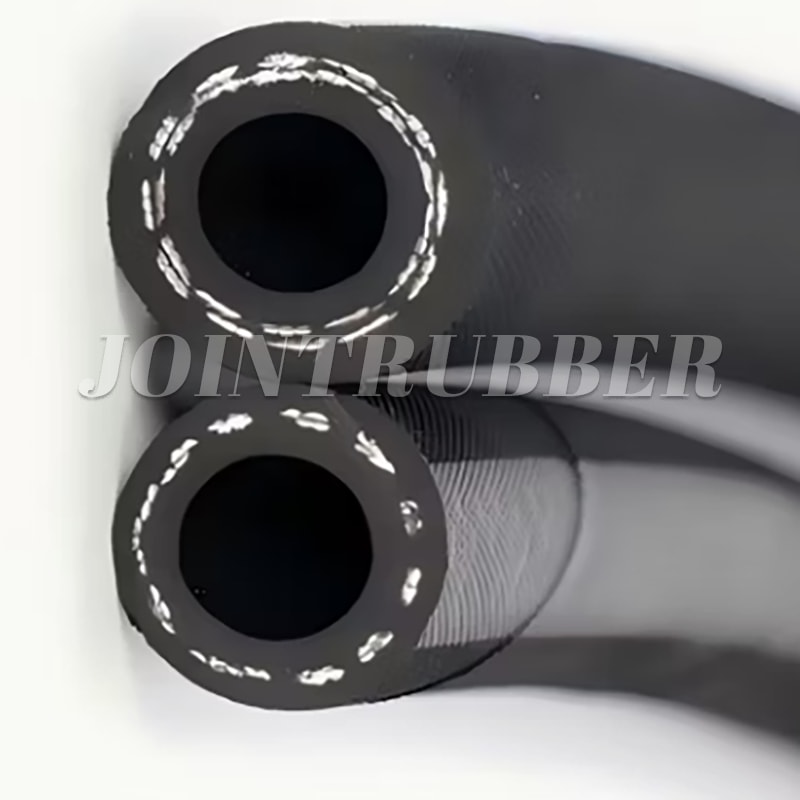

Structure: it is composed of three parts: tube, reinforcement and cover.
Tube: high quality black oil resistant synthetic rubber.
Reinforcement: two layers of braided textile, making the hose lightweight and flexible.
Cover: high quality abrasion, corrosion and weather resistant synthetic rubber.
DIN EN854 2TE Working temperature: -40 °C to +121 °C.

Consult now

Technical Specifications


Size		Hose ID	Hose O.D.	Max Working Pressure		Min Burst Pressure		Min Bend Radius	Weight
In.	mm	mm	mm	Bar	Psi	Bar	Psi	mm	kg/m
3/16	5	5±0.2	11.5±0.3	80	1160	320	4640	35	0.16
1/4	6	6.2±0.2	13±0.3	75	1088	300	4325	40	0.19
5/16	8	8±0.2	14.2±0.3	68	986	272	3944	50	0.24
3/8	10	9.8±0.2	16.2±0.3	63	914	252	3656	60	0.27
1/2	12.5	12.5±0.2	19.8±0.3	58	841	232	3364	70	0.34
5/8	16	16±0.2	23±0.3	50	725	200	2900	90	0.43
3/4	19	19±0.2	27±0.3	45	653	180	2612	110	0.50
1	25	25±0.2	33±0.3	40	580	160	2320	130	0.67
1-1/4	32	30±0.2	42.3±0.3	35	507	140	2028	150	0.83
