DIN EN854 1TE - Products

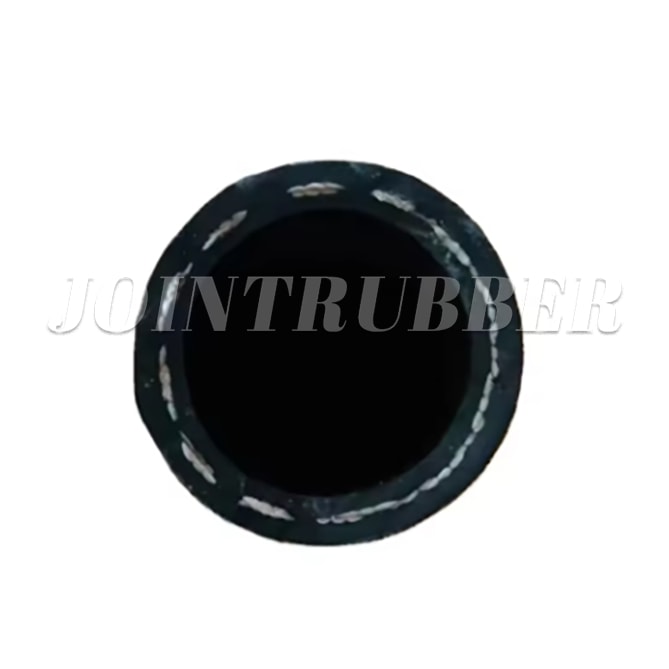

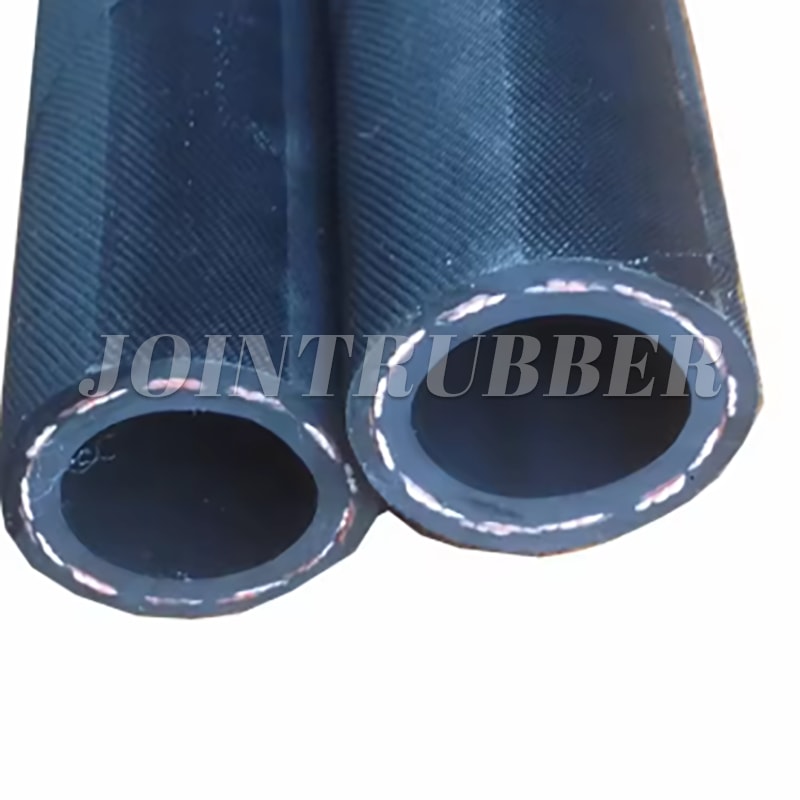

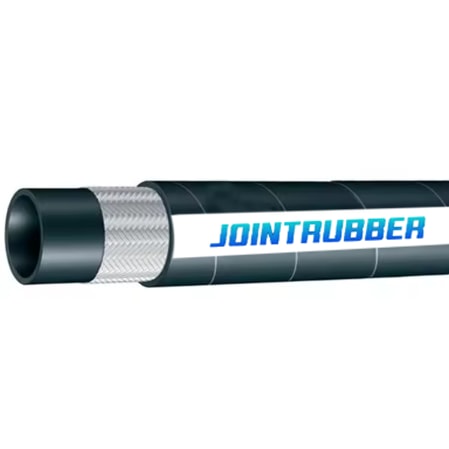

DIN EN854 1TE

Features

Tube: Oil resistant synthetic rubber
Reinforcement: One high-strength fiber braid
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application:DIN EN854 1TE is suitable for Petroleum based hydraulic fluid, gasoline, water, lubricating oils, glycol, mineral oils, and more.

Consult now

Technical Specifications


Size		Hose ID	Hose O.D.	Max Working Pressure		Min Burst Pressure		Min Bend Radius	Weight
In.	mm	mm	mm	Bar	Psi	Bar	Psi	mm	kg/m
3/16	5	5±0.2	11.5±0.3	25	363	100	1450	35	0.15
1/4	6	6.2±0.2	13±0.3	25	363	100	1450	45	0.15
5/16	8	8±0.2	14.2±0.3	20	290	80	1160	65	0.17
3/8	10	9.8±0.2	15.9±0.3	20	290	80	1160	75	0.17
1/2	12.5	12.5±0.2	19±0.3	16	232	64	928	90	0.27
5/8	16	16±0.2	23±0.3	16	232	64	928	115	0.31
3/4	19	19±0.2	26.6±0.3	12	174	48	696	135	0.44
1	25	25±0.2	33±0.3	12	174	48	696	165	0.55
