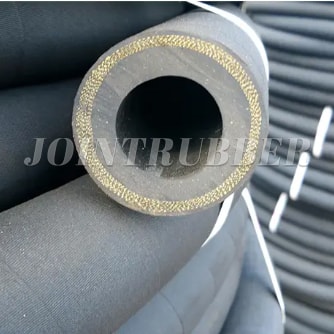

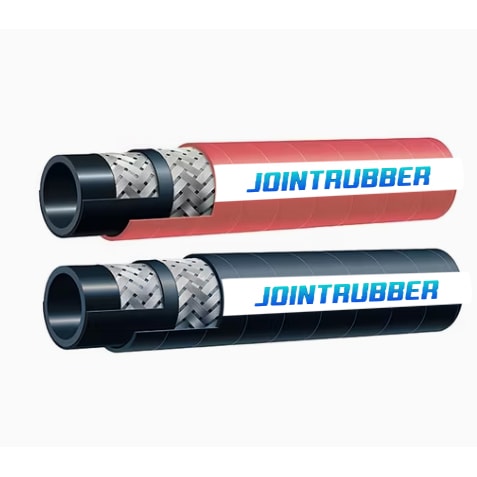

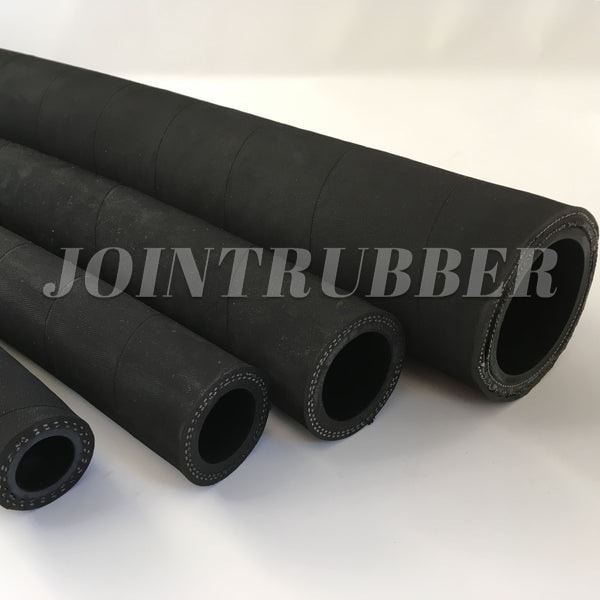

Steam hose

Features

Tube: Synthetic rubber EPDM
Reinforcement: high tensile wire braiding
Material: EPDM
Working pressure: 10bar/20bar
Steam Hose Application:The steam hose is used for the saturated steam in chemical industry, petroleum industry, shipbuilding industry

Consult now

Technical Specifications

W/B	Size		Outside Diameter	Working Pressure		Burst Pressure		Bending Radius	Length
W/B	mm	inch	mm	Mpa	Psi	Mpa	Psi	mm	m
1W	10	3/8″	21.5	1	150	4	570	130	20/ 50
	13	1/2″	24.5	1	150	4	570	180	20/ 50
	16	5/8″	27.5	1	150	4	570	205	20/ 50
	19	3/4″	30.5	1	150	4	570	240	20/ 50
	22	7/8″	33.5	1	150	4	570	280	20/ 50
	25	1″	37.0	1	150	4	570	300	20/ 50
	32	1-1/4″	44.0	1	150	4	570	420	20/ 40
	38	1-1/2″	50.5	1	150	4	570	500	20/ 40
	45	1-3/4″	57.5	1	150	4	570	500	20/ 40
	51	2″	63.5	1	150	4	570	630	20/ 40
	64	2-1/2″	77.5	1	150	4	570	700	20/ 40
2W	10	3/8″	23.0	2	300	6	860	130	20/ 50
	13	1/2″	26.0	2	300	6	860	180	20/ 50
	16	5/8″	29.0	2	300	6	860	205	20/ 50
	19	3/4″	32.0	2	300	6	860	240	20/ 50
	22	7/8″	35.0	2	300	6	860	280	20/ 50
	25	1″	38.5	2	300	6	860	300	20/ 50
	32	1-1/4″	45.5	2	300	6	860	420	20/ 40
