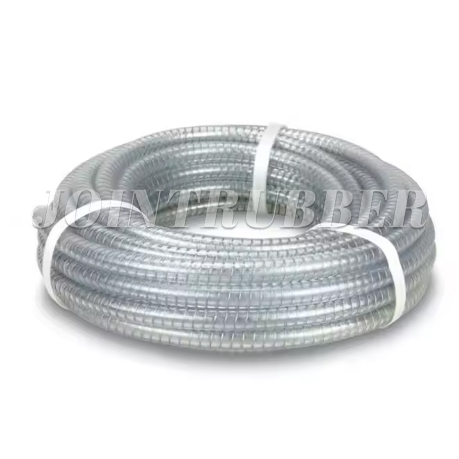

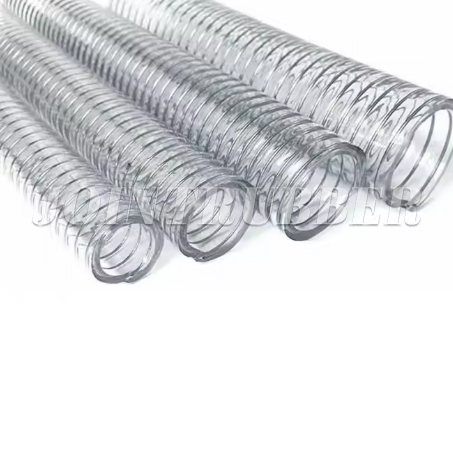

PVC Steel Wire Reinforced Hose

Features

PVC Steel Wire Reinforced Hose is also called PVC spring wire hose, PVC pump suction hose, PVC flexible suction hose, PVC water hose pipe, PVC water delivery hose, clear wire reinforced hose, spring water hose, spring suction hose etc.
Working Temperature: from -5℃ to +65℃
Application: Widely used for drawing and conveying water, oil and powder in factories agriculture, engineering, food stuffs and sanitary lines.

Consult now

Technical Specifications

British Measurement	Metric Measurement			W.P.	B.P.	Weight
British Measurement	I.D.	Wall	Length	W.P.	B.P.	Weight
Inch	mm	Thickness	M/roll	Mpa	Mpa	Kg/m
3/8	Φ10	2.8-3.0	100	0.5	1.5	0.2
1/2	Φ13	2.8-3.0	100	0.5	1.5	0.23
5/8	Φ16	2.3-2.8	100	0.5	1.5	0.25
3/4	Φ19	2.5-2.8	50	0.5	1.5	0.3
3/4	Φ19	3.6-3.8	50	0.5	1.5	0.4
1	Φ25	1.5-1.7	50	0.35	1.05	0.25
1	Φ25	1.7-1.8	50	0.4	1.2	0.3
1	Φ25	2.6-2.8	50	0.45	1.35	0.4
1-1/4	Φ32	2.3-2.5	50	0.3	0.9	0.5
1-1/4	Φ32	3.2-3.5	50	0.4	1.2	0.7
1-3/8	Φ34	2.9-3.0	50	0.3	0.9	0.6
1-1/2	Φ38	2.2-2.3	50	0.2	0.6	0.5
1-1/2	Φ38	3.5-3.8	50	0.35	1.05	0.8
1-1/2	Φ38	4.2-4.5	50	0.45	1.35	0.1
	Φ40	3.0-3.5	50	0.25	0.75	0.7
1-3/4	Φ45	3.0-3.3	50	0.25	0.75	0.8
1-3/4	Φ45	3.6-3.7	50	0.35	1.05	1.0
2	Φ50	2.5-2.8	50	0.2	0.6	0.8
2	Φ50	3.2-3.3	50	0.25	0.75	1.0
2	Φ50	3.7-3.8	50	0.35	1.05	1.2
2	Φ50	4.8-4.9	50	0.4	1.2	1.4
2-3/8	Φ58	3.8-4.0	40	0.25	0.75	1.2
2-3/8	Φ58	4.2-4.5	40	0.25	0.75	1.4
2-1/2	Φ64	2.8-3.1	40	0.12	0.36	1.2
2-1/2	Φ64	3.5-3.7	40	0.18	0.54	1.6
2-1/2	Φ64	5.0-5.5	40	0.25	0.75	2.0
3	Φ75	3.8-4.0	40	0.18	0.54	1.8
3	Φ75	4.3-4.7	40	0.2	0.6	2.0
3	Φ75	5.3-5.5	40	0.3	0.9	2.5
3-1/2	Φ89	3.8-4.2	30	0.15	0.45	2.5
3-1/2	Φ89	5.5-6.0	30	0.2	0.6	3.0
4	Φ102	4.2-4.3	30	0.1	0.3	2.6
4	Φ102	5.0-5.3	30	0.15	0.45	3.0
4-1/2	Φ110	5.0-5.2	20	0.3	0.9	4.5
5	Φ127	5.0-5.4	20	0.3	0.9	5.0
6	Φ152	6.0-6.3	20	0.3	0.9	6.0
