PVC Fiber Reinforced Hose

Features

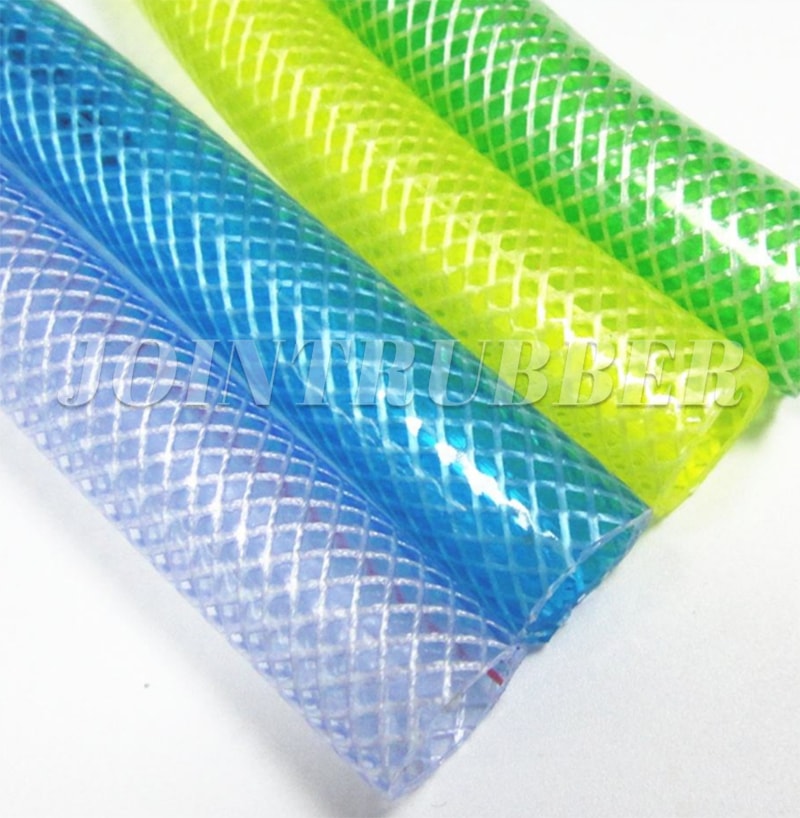

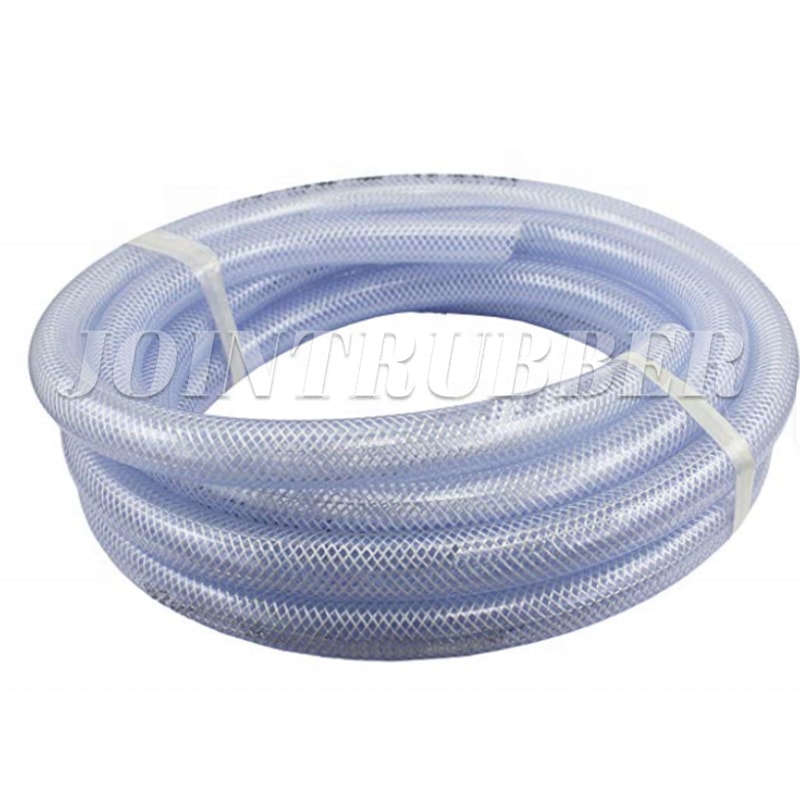

PVC Fiber Reinforced Hose is also called PVC fiber hose, clear braided hose, PVC braided hose, fiber hose, PVC fiber reinforced hose etc. Which is an ideal hose designed for transfer in any industrial application.
Applications: PVC Fiber Reinforced Hose is used for conveying water,oil,gas under normal working condition in the factory,farm,ship,building and family.
Characteristics: It is flexible,transparent,durable,non-toxic,without order,anti-erosionand adaptable to high pressure condition.by adding colorful symbol lines on the surface of the hose,it looks more beautiful.
Working temperature: -5℃-+65℃

Consult now

Technical Specifications

British Size	Metric Measurement			W.P.	B.P.	Weight	Packing Size	Volume
British Size	Metric Measurement			At 23℃		Weight	Packing Size	Volume
Inch	I.D.mm	O.D.mm	Mts/roll	MPa	MPa	KG/roll	D×Hmm	m3
13/64"	5	9	170	1.2	3.6	10	420×130	0.023
1/4"	6	10	146	1.2	3.6	10	430×135	0.025
	6	11	110	1.2	3.6	10	400×150	0.024
	6	12	87	1.2	3.6	10	400×150	0.024
5/16"	8	12	117	1.2	3.6	10	440×150	0.029
	8	13	89	1.2	3.6	10	425×145	0.026
	8	14	71	1.2	3.6	10	420×145	0.025
3/8"	9	13	106	1.1	3.5	10	430×150	0.027
3/8"	9	14	81	1.1	3.5	10	425×150	0.027
13/32"	10	14	98	1.1	3.5	10	440×150	0.03
	10	15	75	1.1	3.5	10	425×155	0.028
	10	16	60	1.1	3.5	10	430×140	0.026
1/2"	12	16	167	0.8	2.4	20	560×180	0.056
	12	17	129	0.8	2.6	20	560×200	0.062
	12	18	104	0.9	2.8	20	560×185	0.058
1/2"	13	17	156	0.8	2.4	20	560×195	0.061
	13	18	121	0.8	2.5	20	570×190	0.062
	13	19	98	0.9	2.8	20	560×200	0.063
35/64"	14	19	114	0.8	2.4	20	560×210	0.066
35/64"	14	20	92	0.8	2.4	20	540×220	0.064
5/8"	15	19	138	0.8	2.4	20	630×195	0.077
	15	20	107	0.8	2.5	20	580×220	0.074
	15	21	87	0.9	2.8	20	580×220	0.074
	16	20	130	0.7	2.1	20	580×220	0.074
	16	21	101	0.7	2.2	20	580×220	0.074
	16	22	82	1	3.5	20	570×205	0.067
45/64"	18	24	75	0.8	2.4	20	570×195	0.063
3/4"	19	23	112	0.6	1.8	20	640×215	0.088
	19	24	87	0.7	2.3	20	600×210	0.076
	19	25	71	0.8	2.5	20	580×210	0.07
	19	26	59	0.9	2.7	20	570×210	0.068
25/32"	20	25	83	0.7	2.1	20	615×210	0.079
	20	26	68	0.7	2.3	20	610×185	0.069
	20	27	57	0.8	2.5	20	590×210	0.073
55/64"	22	30	46	0.8	2.5	20	580×220	0.074
1"	25	29	87	0.4	1.2	20	640×230	0.094
	25	30	69	0.5	1.5	20	640×230	0.094
	25	31	56	0.6	1.8	20	650×220	0.093
	25	32	47	0.6	1.8	20	610×250	0.093
1-1/4"	32	38	67	0.5	1.5	30	770×229	0.136
	32	39	57	0.5	1.5	30	770×230	0.136
	32	40	49	0.6	1.8	30	760×290	0.167
	32	41	43	0.6	2	30	750×250	0.14
1-1/2"	38	45	48	0.5	0.5	30	770×240	0.142
	38	46	42	0.5	0.5	30	770×240	0.142
	38	47	37	0.6	0.6	30	780×280	0.17
1-3/4"	45	55	47	0.5	1.5	50	960×340	0.313
2"	50	58	54	0.4	1.2	50	980×240	0.23
	50	59	48	0.5	1.5	50	980×240	0.23
	50	60	43	0.5	1.5	50	980×240	0.23
	50	61	38	0.6	1.8	50	930×380	0.33
	50	62	35	0.6	1.8	50	930×380	0.33
